2019 FR3 Forest River RV 33D

  • $57,449 SELLING PRICE
  • Doc Fee $699
  • Selling Price $57,449
$881 /month
6.95% APR
72 months
  • Documentation Fee $699
  • Starting Price $56,750
  • Down Payment $5,675
*Excludes tax, title & fees
Disclaimers Info Icon

Visit our Store

Vehicle Information

VIN: 1F66F5DY4K0A05617
Stock #: UA05617
Model Code: F5D
  • Body Style A
  • Exterior Color White
  • Interior Color Seats Not Included (No Pedestal)
  • Mileage 11,511
  • Engine 10 Cyl - 6.8 L
  • Transmission 6-Speed Automatic with Overdrive
  • Fuel Type Gasoline

Highlighted Features

Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
  • Cruise Control

All Features

  • 4.30 Axle Ratio
  • GVWR: 16,000 lbs. Payload Package -inc: 11,000 lbs, rear DANA 80 axle, 6,500 lbs, front GAWR and 11,000 lbs, rear GAWR
  • 50 State Emissions System
  • Rear-Wheel Drive
  • 78-Amp/Hr 750CCA Maintenance-Free Battery
  • 175 Amp Alternator
  • Trailer Wiring Harness
  • 9757# Maximum Payload
  • Sachs Brand Name Shock Absorbers
  • Front And Rear Anti-Roll Bars
  • Firm Suspension
  • Hydraulic Power-Assist Steering
  • 80 Gal. Fuel Tank
  • Single Stainless Steel Exhaust
  • Leaf Front Suspension w/Multi-Leaf Springs
  • Solid Axle Rear Suspension w/Multi-Leaf Springs
  • 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs
  • Wheels: 19.5" x 6.75" Steel (6)
  • Tires: LT245/70Rx19.5G BSW Highway
  • Fixed Driver Seat
  • Fixed Passenger Seat
  • Manual Tilt Steering Column
  • Cruise Control w/Steering Wheel Controls
  • Provision Air Conditioning
  • Urethane Gear Shifter Material
  • Power Door Locks
  • Outside Temp Gauge
  • Analog Appearance

ENGINE: 6.8L 3-VALVE SOHC EFI TRITON V10

  • (STD)

  • Electrical
    • Cold Cranking Amps @ 0° F (Primary): 750
    • Cold Cranking Amps @ 0° F (2nd): 750
    • Maximum Alternator Capacity (amps): 175
  • Weight Information
    • Base Curb Weight (lbs): 6307
    • Gross Axle Wt Rating - Front (lbs): 6500
    • Gross Axle Wt Rating - Rear (lbs): 11000
    • Curb Weight - Front (lbs): 3088
    • Curb Weight - Rear (lbs): 3219
    • Gross Vehicle Weight Rating Cap (lbs): 16000
    • Gross Combined Wt Rating (lbs): 23000
  • Trailering
    • Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
    • Dead Weight Hitch - Max Tongue Wt. (lbs): 500
    • Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
    • Wt Distributing Hitch - Max Tongue Wt. (lbs): 700
    • Maximum Trailering Capacity (lbs): 7000
  • Suspension
    • Suspension Type - Front: Leaf
    • Suspension Type - Rear: Leaf
    • Spring Capacity - Front (lbs): 7000
    • Spring Capacity - Rear (lbs): 11000
    • Axle Type - Front: Non-Independent
    • Axle Type - Rear: Rigid Axle
    • Axle Capacity - Front (lbs): 8000
    • Axle Capacity - Rear (lbs): 12000
    • Axle Ratio (:1) - Front: 4.30
    • Axle Ratio (:1) - Rear: 4.30
  • Brakes
    • Brake Type: 4-Wheel Disc
    • Brake ABS System: 4-Wheel
    • Brake ABS System (Second Line): 4-Wheel
    • Disc - Front (Yes or ): Yes
    • Disc - Rear (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 15.6
    • Rear Brake Rotor Diam x Thickness (in): 15.6
  • Tires
    • Front Tire Order Code: T96
    • Rear Tire Order Code: T96
    • Front Tire Size: LT245/70SR19.5
    • Rear Tire Size: LT245/70SR19.5
    • Front Tire Capacity (lbs): 7780
    • Rear Tire Capacity (lbs): 14620
    • Revolutions/Mile @ 45 mph - Front: 633
    • Revolutions/Mile @ 45 mph - Rear: 633
  • Wheels
    • Front Wheel Size (in): 19.5 X 6.75
    • Rear Wheel Size (in): 19.5 X 6.75
    • Front Wheel Material: Steel
    • Rear Wheel Material: Steel
  • Steering
    • Steering Type: Re-Circulating Ball
    • Turning Diameter - Curb to Curb (ft): 45.4
  • Fuel Tank
    • Fuel Tank Capacity, Approx (gal): 80
  • Exterior Dimensions
    • Wheelbase (in): 158
    • Length, Overall (in): 300.1
    • Overhang, Front (in): 36.3
    • Overhang, Rear w/o bumper (in): 105.8
  • Interior Dimensions
    • Passenger Capacity: 1
  • Summary

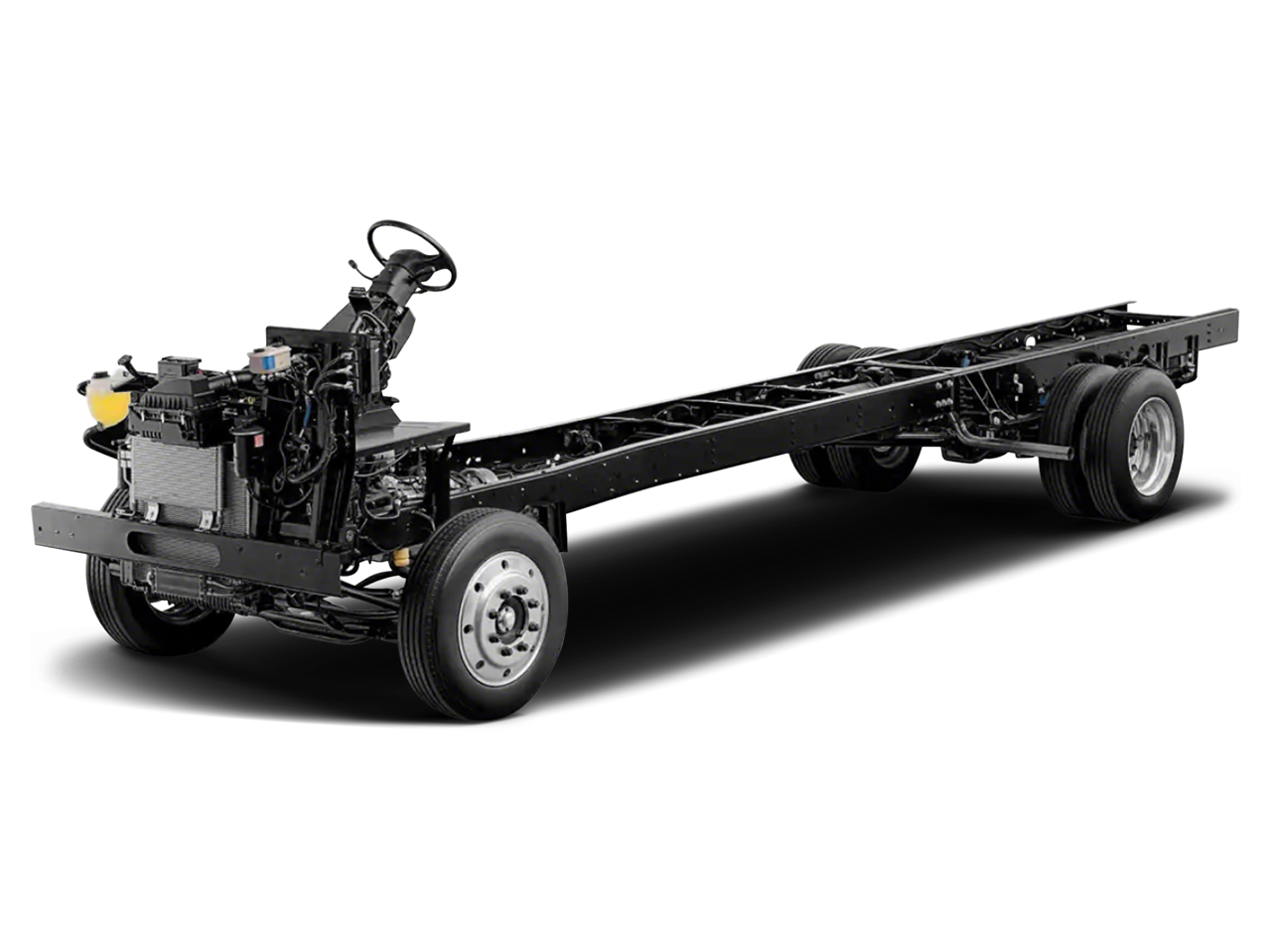

    • Vehicle Name: Ford F-53 Motorhome Stripped Chassis
    • Body Style: Chassis
    • Body Code: H
